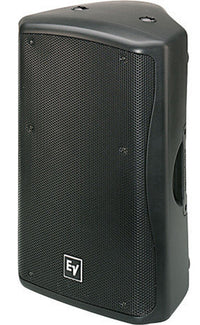

Electro-Voice ZX5-60B 15in. 600-Watt 2-Way Passive Loudspeaker

Electro-Voice ZX5-60B 15in. 600-Watt 2-Way Passive Loudspeaker

$1,765.00
Brand: Electro-VoiceReviews
Special order products normally take 10–14 business days to ship, depending on vendor availability.
  • Free US shipping on this item.
  • Special order: no returns without a manufacturer RMA. It ships from the manufacturer and lead times vary. If you cancel after your payment is captured (4 business days after the order is made), a 3% card processing fee is deducted. Wrong or defective items are always covered.
    Return terms: you pay shipping both ways, 3% card fee, 30% if opened
    • 30 daysfrom delivery to start a return
    • Shipping both waysto you and back to us, paid by you
    • 3% card feededucted from every refund
    • 30% open-box feeif the box has been opened
    • Special ordersno returns without a manufacturer RMA
    • Discontinued itemsnot returnable

    Wrong or defective items, and items damaged in transit with Package Protection, are always covered with no fees. Full return policy

  • Manufacturer's warranty from Electro-Voice. Warranty
  • Volume order? Get a quote: chat with us, email us, or add it to your cart and download a PDF quote.
D Questions about this product? Daniel and the team reply fast, usually within minutes, Mon–Fri 8am–4pm ET. Chat with us now or email us.
Outfitting a lobby, store or office? Plan the security side too: cameras, door access and network on a map, with the free Site Planner. Plan it free
More information View images
Reviews

The Electro-Voice ZX5-60B is a 15" two-way 600 watt full-range passive loudspeaker that features a 60º x 60º dispersion pattern.

Features:

  • Versatile performance for mains, fills, or monitors
  • DVX3150A woofer with forced-air cooling
  • 2-inch ND2 titanium/neodymium HF driver
  • Switchable bi-amp or passive crossover operation
  • 60º x 60º coverage horn
  • High sensitivity, 132 dB maximum SPL
  • Power handling: 600 W continuous, 2400 W peak
  • High impact polypropylene enclosure
  • Wedge shape for monitors at 45º or 55º
  • Up to five anchor-plate attachments
  • M8 mounting inserts (10)
  • Integrated handle

Specs:

  • Chassis Size: 15" (381 mm)
  • Color: Black
  • Input Connections: Parallel Neutrik NL4
  • Speaker Type: Full-range, Mid-High, Two-Way, Wedges
  • Frequency Response (-3 dB): 58 Hz - 18 kHz
  • Frequency Response (-10 dB): 39 Hz - 20 kHz
  • Internal Crossover: Switchable biamp or passive crossover
  • Recommended High-Pass Frequency: 36 Hz
  • Sensitivity 1 W/1 m: 98 dB
  • Max. SPL/1m (calc): 132 dB
  • Coverage (Nominal -6 dB) H: 90/60°
  • Coverage (Nominal -6 dB) V: 50/60°
  • System Power Handling (Continuous/Program/Peak): 600//2400 Watts
  • LF Transducer: 15-inch DVX3150A
  • LF Power Handling: 500 Watts
  • HF Power Handling: 40 Watts
  • LF Nominal Impedance: 8 ohms
  • HF Transducer: 2-inch ND2
  • HF Nominal Impedance: 8 ohms
  • Crossover Frequency: 1500 Hz
  • Nominal Impedance (Passive): 8 ohms
  • Minimum Impedance: 6.5 ohms
  • Enclosure Material: High Impact Polystyrene
  • Flying: Yes
  • Outdoor: Yes
  • Grill: Polyester Powder Coated, 18GA Galvanized Steel
  • Height: 27.24" (692 mm)
  • Width: 17.56" (446 mm)
  • Depth: 16.18" (411 mm)
  • Weight (Net): 48.94 lbs (22.2 kg)
