Russound 3610603037 PRO-12HP Dual Source 12 Pair Speaker Selector

$665.00
Special order products normally take 10–14 business days to ship, depending on vendor availability.
  • Free US shipping on this item.
  • Special order: no returns without a manufacturer RMA. It ships from the manufacturer and lead times vary. If you cancel after your payment is captured (4 business days after the order is made), a 3% card processing fee is deducted. Wrong or defective items are always covered.
    Return terms: you pay shipping both ways, 3% card fee, 30% if opened
    • 30 daysfrom delivery to start a return
    • Shipping both waysto you and back to us, paid by you
    • 3% card feededucted from every refund
    • 30% open-box feeif the box has been opened
    • Special ordersno returns without a manufacturer RMA
    • Discontinued itemsnot returnable

    Wrong or defective items, and items damaged in transit with Package Protection, are always covered with no fees. Full return policy

  • Manufacturer's warranty from Russound. Warranty
  • Volume order? Get a quote: chat with us, email us, or add it to your cart and download a PDF quote.
D Questions about this product? Daniel and the team reply fast, usually within minutes, Mon–Fri 8am–4pm ET. Chat with us now or email us.
Outfitting a lobby, store or office? Plan the security side too: cameras, door access and network on a map, with the free Site Planner. Plan it free
Reviews

Overview

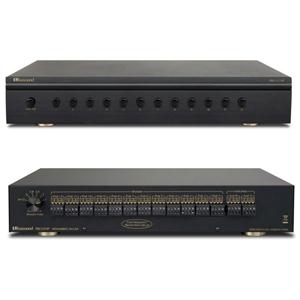

The Russound PRO-12 HP is a dual-source, impedance-matching speaker selector for up to 12 pairs of speakers. A front-panel A/B switch drives all speakers from either of two amplifiers, while autoformers keep the load safe for the amplifier as more speaker pairs are connected.

Key features

  • Connects up to 12 pairs of speakers
  • Two sources selected with a front-panel A/B switch
  • Autoformer impedance matching set with a rear rotary switch based on the number of speaker pairs connected
  • Low-frequency protection circuit reduces subsonic signals, allowing higher power operation without amplifier shutdown
  • Handles 100 W RMS continuous and 300 W peak per channel
  • Detachable 4-pole color-coded snap connectors accept wire up to 14 AWG
  • Printed room labels included

Specifications

Speaker pairs Up to 12
Sources 2 (A/B front-panel switch)
Power handling 100 W RMS continuous, 300 W peak per channel
Impedance matching Autoformers with rear rotary impedance switch
Low-frequency protection Bipolar capacitor circuit, 6 dB high-pass filter centered at 30 Hz
Connectors Detachable 4-pole color-coded snap connectors, up to 14 AWG
Packaged dimensions 20.3" W x 6.2" H x 12.2" D (51.4 x 15.6 x 30.9 cm)
Packaged weight 9.9 lbs (4.5 kg)

Typical uses

  • Distributing one or two amplifiers to speakers in up to 12 rooms or zones
  • Whole-house audio in homes with many speaker pairs
  • Restaurants, offices and retail spaces with multiple speaker areas

Shipping

Free US shipping on orders over $200. Orders under $200 ship at the rate shown at checkout. Oversized items ship by freight; we confirm the quote with you first.

Shipping policy

Returns

Special order: no returns without a manufacturer RMA. Wrong or defective items are always covered.

Start a return

Damaged or wrong item?

Tell us within 3 days of delivery with photos and we'll make it right, with no fee.

Contact us

Russound warranty

This product is covered by the manufacturer's warranty. We help you with the claim from start to finish.

Warranty details

Support from real people

Setup questions, compatibility, firmware: chat with a specialist or email info@silarius.com, Monday to Friday, 8am to 4pm ET.

Chat with us

Business accounts

Approved businesses can pay on Net 30 / PO terms after their second completed order.

Ask about terms

Frequently Asked Questions

How many speakers can the PRO-12 HP drive?+
It connects up to 12 pairs of speakers, and a rear rotary switch sets the impedance for your amplifier based on the number of pairs connected.
Can I use two amplifiers?+
Yes. It is a dual-source selector; a front-panel A/B switch lets you power all speakers from either of two source amplifiers.
Will it protect my amplifier at high volume?+
Russound states its low-frequency protection circuit reduces subsonic signals, allowing higher power operation without amplifier shutdown.
What wire size do the connectors accept?+
The detachable 4-pole color-coded snap connectors accept wire up to 14 AWG.
