Complete your setup
Everything this camera needs, matched by our specialists. Silarius picks first.

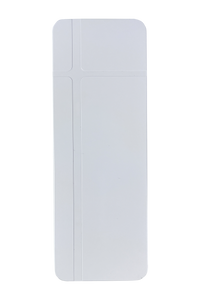

SIL-P2P300MB13000FT58GHZ is an high power 5.8G outdoor CPE/WiFi Bridge with 300Mbps data rate. Comply with IEEE802.11a/n standard, Atheros chipset, it supply you a stable and freely wifi networking. What’s more, with 14dBi high gain antenna, 300mW high power output power, the wifi distance more than 4000 meters.
SIL-P2P300MB13000FT58GHZ with wonderful RF performance, receive sensitivity can be -92dBm, then comply with 5G standard, improved hardware wifi interference, it is best choice for video and security industrial.
Meantime, it support Power over Ethernet, support passive PoE, easy in setup even no power socket nearby. With LED light show signal strength, easy to find a suitable place for outdoor CPE, save much human work and cost. With water proof case, it is best choice for outdoor wifi projects.
ABS waterproof, dust proof and sunscreen shell, temperature adaptive and board protective .
SIL-P2P300MB13000FT58GHZ with ABS waterproof, dust proof and sunscreen shell, avoid the damage from dust, thunderstorm weather. Meantime, it adaptive to various environment, the working temperature can be normal at -30℃ to 65℃. Suit for any country.
300Mbps high speed, Atheros industrial chipset, wider application
SIL-P2P300MB13000FT58GHZ comply with IEEE 802.11a/n standard, 300Mbps high speed, with Atheros industrial solution, it is a wifi bridge with low power consumption, strong security. With PTP, PTMP, bridge operation mode, widely be used in voice, video, data transmission in long range wireless monitor industrial.
300mW High Power, 14dBi High Gain Antenna, Long Range wifi Device in market.
WP504 with external power amplifier, 300mW true power, 14dBi high gain antenna, the wifi range is more than 3000 meter, it is the device with very stable performance in long range, but competitive in price.
5.8GHz frequency, faster, lower latency, higher stability
WP504 with frequency of 5.180~5.825GHz, with wireless backbone channel of Europe, Japan, China, it avoid the same frequency interference problem, full meet with data transmission in fast speed, low delay, high stability requirement in wireless monitor.
Support Power over Ethernet, cost save
The device has integrated Power over Ethernet (PoE) for easy installation and lower cost, with 24V PoE, it can be installed in areas where power outlets are not readily available, eliminating the mess of altering existing network infrastructure.
Easy configure, multi function, remote control
SIL-P2P300MB13000FT58GHZ with humanized configuration steps, simple to complete the entire system configuration, supply more efficient service for your networking.
SIL-P2P300MB13000FT58GHZ support IP bandwidth control, DDNS, firewall, traffic statistics, watchdog, restart in a limited time, together with remote control in restart device and restore to default.
|
Model |
SIL-P2P300MB13000FT58GHZ |
|
Hardware Specifications |
|
|
Interface |
WAN/LAN PoE 10/100Mbps RJ45 |
|
Button |
1*Reset Button， Long press to reset, short press to adjust digital display number |
|
Power Consumption |
<12W |
|
Power Supply |
POE：24V 0.5A，DC：12V 1A |
|
working environment |
Temperature：-40℃～+75℃（operating），-40℃ ～+80℃（storage）Humidity（no-condensing）：5％～90％（operating），5％～95％（storage） |
|
Size |
251*54*40(mm) |
|
Weight |
0.5KG |
|
Radio frequency Feature |
|
|
Frequency |
5.180 - 5.825 GHz |
|
Modulation |
OFDM = BPSK,QPSK,16-QAM,64-QAM;DSSS = DBPSK,DQPSK,CCK |
|
Data Rate |
11n: up to 300Mbps(dynamic)11a: up to 54Mbps(dynamic) |
|
Protocol |
CSMA/CA、CSMA/CD、TCP/IP、ICMP、NAT、DHCP , Wired static , Wifi Client , UDP, DDNS、 |
|
Standard |
IEEE802.3, IEEE 802.11n, IEEE 802.11a |
|
Security |
64/128bit WEP WPA WPA2 WPS |
|
RF Output Power |
802.11n:MCS7 19±2 DB, MCS0 22±2DB.802.11a:54M 20±2DB,6M 23±2DB. |
|
Receive Sensitivity |
802.11n: -68dbm@MCS7; -88dbm@MCS7;802.11a: -72dbm@54Mbps; -92dbm@6Mbps; |
|
Antenna |
14dBi MIMO Panel antenna |
|
Data of 14dBi Panel Antenna |
|
|
Frequency range（MHz） |
5150～5850 |
|
Bandwidth(MHz) |
700 |
|
Polarization |
Vertical and Horizontal |
|
Gain（dBi） |
2×14 |
|
Half-power beam width（°） |
Vertical |
|
Input Impedance（Ω） |
50 |
|
VSWR |
≤1.8 |
|
Software Feature |
|
|
Working Mode |
Router, Universal Repeater, WISP, AP and Repeater |
|
Users |
64 |
|
Network |
Controller address /DHCP/ static IP |
|
System |
Restore factory/system restart |
