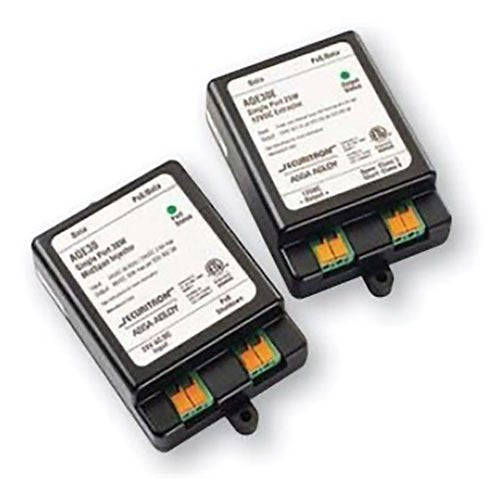

Talkaphone POE-MID-EXT-1 1-Port PoE Midspan Extractor

Talkaphone POE-MID-EXT-1 1-Port PoE Midspan Extractor

$370.00
  • Outputs 12VDC up to a maximum of 25W of power to a non-PoE device from a 30W, IEEE 802.3at PoE source
  • RJ45 connectors for data input and output
  • Two (2) terminal strips for DC output and power level selection
  • Outputs 12VDC up to a maximum of 25W of power to a non-PoE device from a 30W, IEEE 802.3at PoE source
  • RJ45 connectors for data input and output
  • Two (2) terminal strips for DC output and power level selection
  • Selectable for 13W or 25W output
  • Requires an IEEE 802.3at Ethernet switch (provided by others) with ports supporting a minimum output power of 30W

Talkaphone’sPOE-MID-EXT-1Single-Port Power over Ethernet (PoE) Midspan Extractor is designed to provide power to an ETP-EL12/24 Blue Light and/or an LED Panel Light (P/N 68590) via a 30W, IEEE 802.3at network connection.



Main Features
  • Outputs 12VDC up to a maximum of 25W of power to a non-PoE device from a 30W, IEEE 802.3at PoE source
  • RJ45 connectors for data input and output
  • Two (2) terminal strips for DC output and power level selection
  • Selectable for 13W or 25W output
  • Requires an IEEE 802.3at Ethernet switch (provided by others) with ports supporting a minimum output power of 30W
General Information
Name: Talkaphone POE-MID-EXT-1 1-Port PoE Midspan Extractor, Talkaphone LLC, Talkaphone
Category: Talkaphone, Data Comm & Networking, PoE Devices, PoE Injectors
