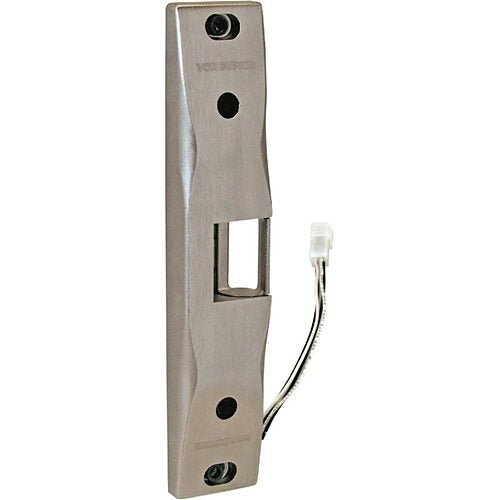

Von Duprin 6400 Series Electric Strike, Fail Secure, Satin Stainless Steel

he 6400 electric door strike from Von Duprin is designed to be modular and highly configurable to fit nearly any mortise or cylindrical lock. This versatile strike allows the installer to insert and lock-in the deadbolt keeper or plug and deadlatch ramp anywhere within its 3 1/8" vertical opening to fit the latch position and functional needs. This, combined with a 1/8" horizontal adjustment, makes this easy-to-install design a good fit for installations where misalignment or a tight fit may be a problem.

As a 3-hour UL 10C listed strike, the 6400 Series is intended as a fail-secure only solution for fire-rated openings. Its durability and quality are shown by its grade 1 certification as a heavy-duty stainless steel strike with over 2,000,000 endurance cycles.

Use it as a time-saving, "go to" strike. The 6400 comes ready for use with prewired plug-in connectors for 12 or 24 VDC voltage that can be changed over to 12 or 24 VAC without a converter kit, two faceplates - one each for offset and centerline locks as well as a trim filler plate, mounting tabs and shims and a self-adhesive template for frame cuts. An optional "plug in" latchbolt monitor is also available and can be added in the field at any time after installation.

Features and benefits

• Modular design fits cylindrical and nearly any mortise lock
• Heavy-duty stainless steel construction in BHMA 630 satin
  finish
• Vertical adjustments allow for alignment with a wide
  variety of mortise locks with offset latches
• Horizontal adjustment of up to1/8"improves fit on tight
  door preps
• Can accommodate up to 1" deadbolt (for night latch only)
• Field selectable voltage 12 or 24VDC and 12 to 24VAC
• Plug-in voltage connectors are included for ease of installation and removal during strike servicing
• Optional plug-in latchbolt monitor can be added in the field
• Non-handed, unique internal solenoid design prevents keeper from heating up
• Low current draw (0.19 amps @ 24 VDCc
• Suitable for interior and exterior doors
• 3-hour fire-rated to UL 10C (fail secure only)
• UL 1034 listed for burglary-resistant electric door strikes
• UL 294 listed for access control system
• CSFM California State Fire Marshal listed
• ANSI/BHMA A156.31, Grade 1 certified
• Static strength: 1500 lbs
• Dynamic strength 70 ft-lbs
• Endurance 2,000,000 cycles
